Push actuator 01
Push actuator 01 Micro-positioning linear actuator 55: Travel (mm)200: Resolution (nm/motor step) min. 5 steps500: Axial load (N)VS: Secondary vacuum […]

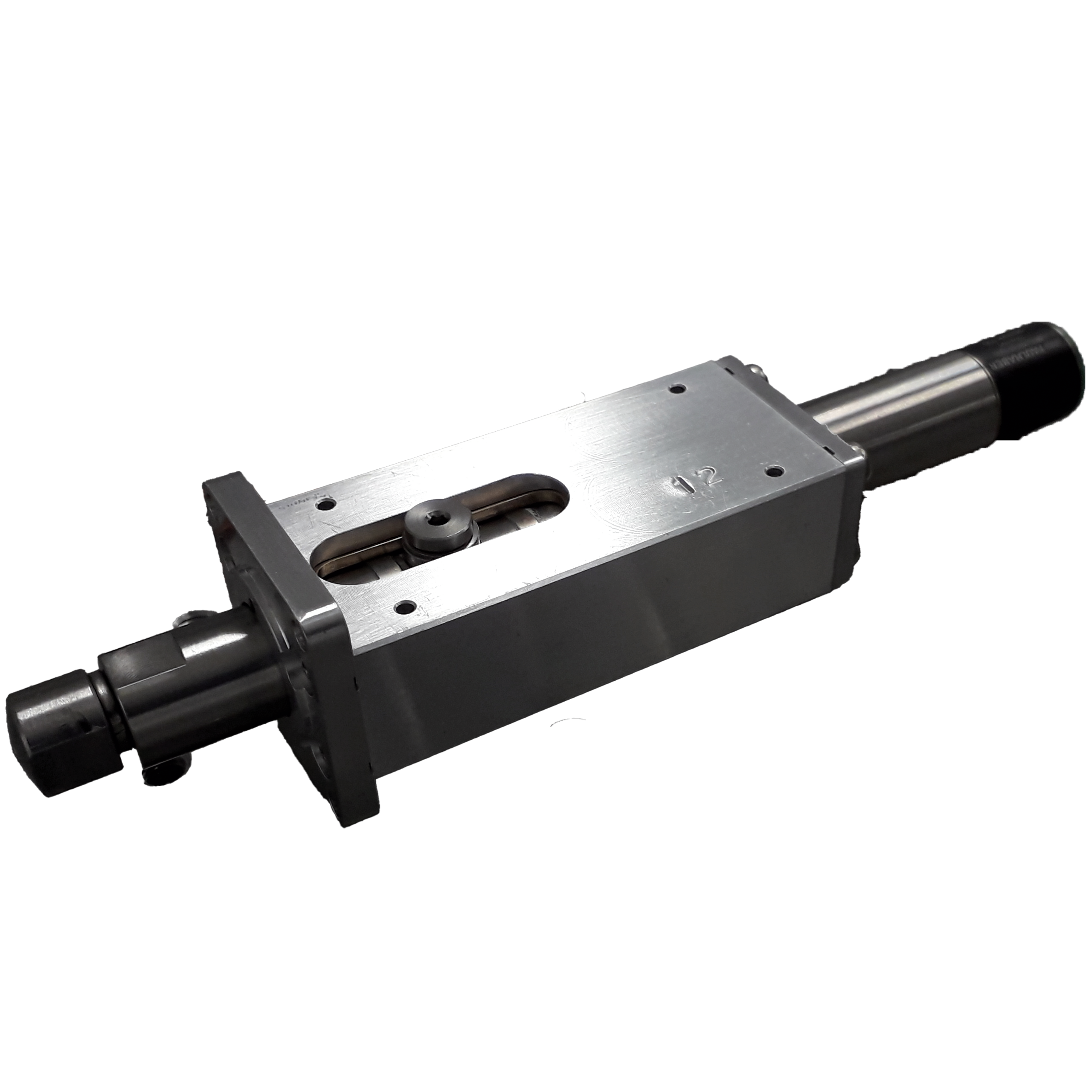

Push actuator
Push actuator 02 Micro-positioning linear actuator 20: Stroke (mm)150: Resolution (nm/motor step)min. 5 steps 200: Axial load (N)A: Actuator body
Push actuator

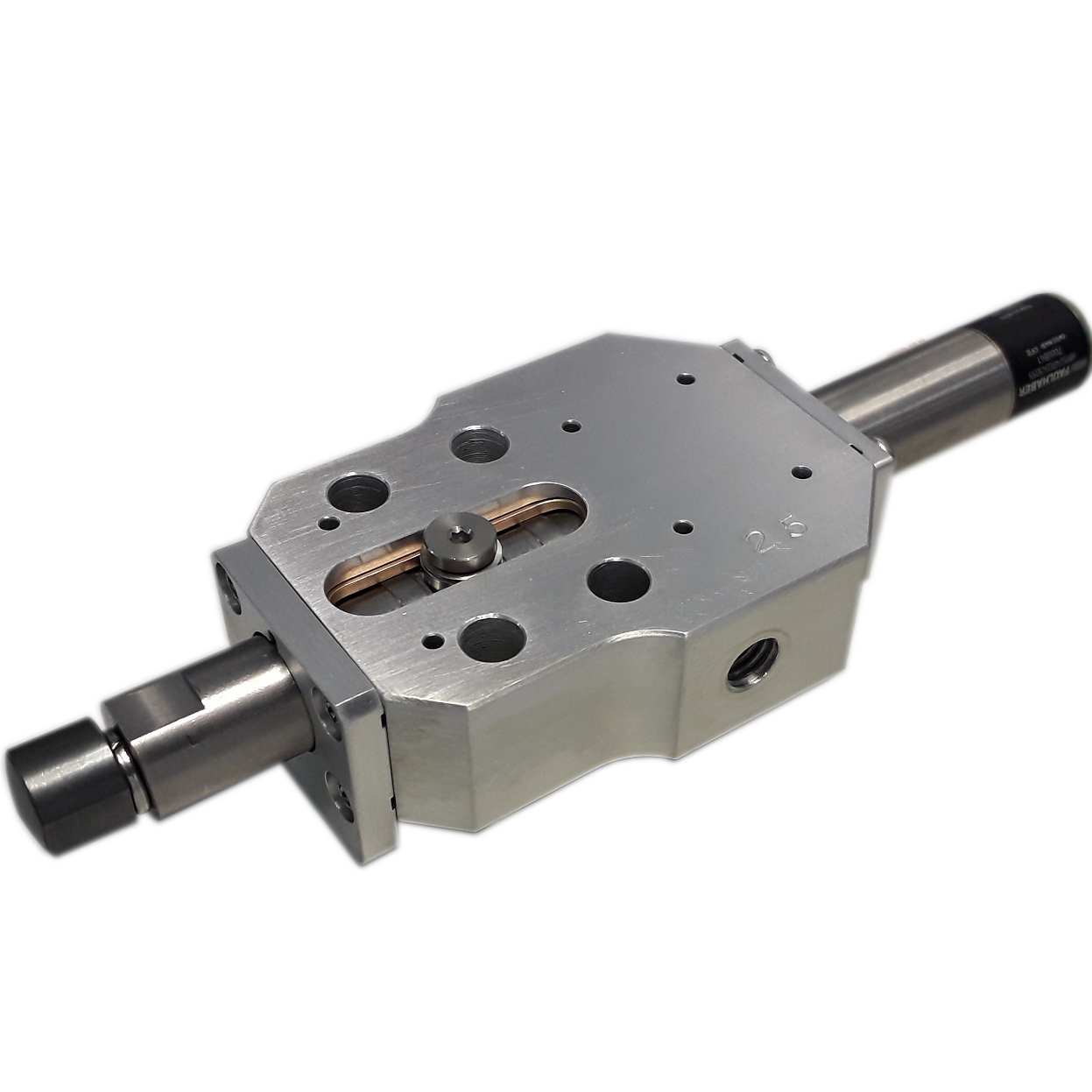

Push actuator 03 Micro-positioning linear actuator 20: Travel (mm)150: Resolution (nm/motor step)min. 5 steps 200: Axial load (N)B: Actuator body

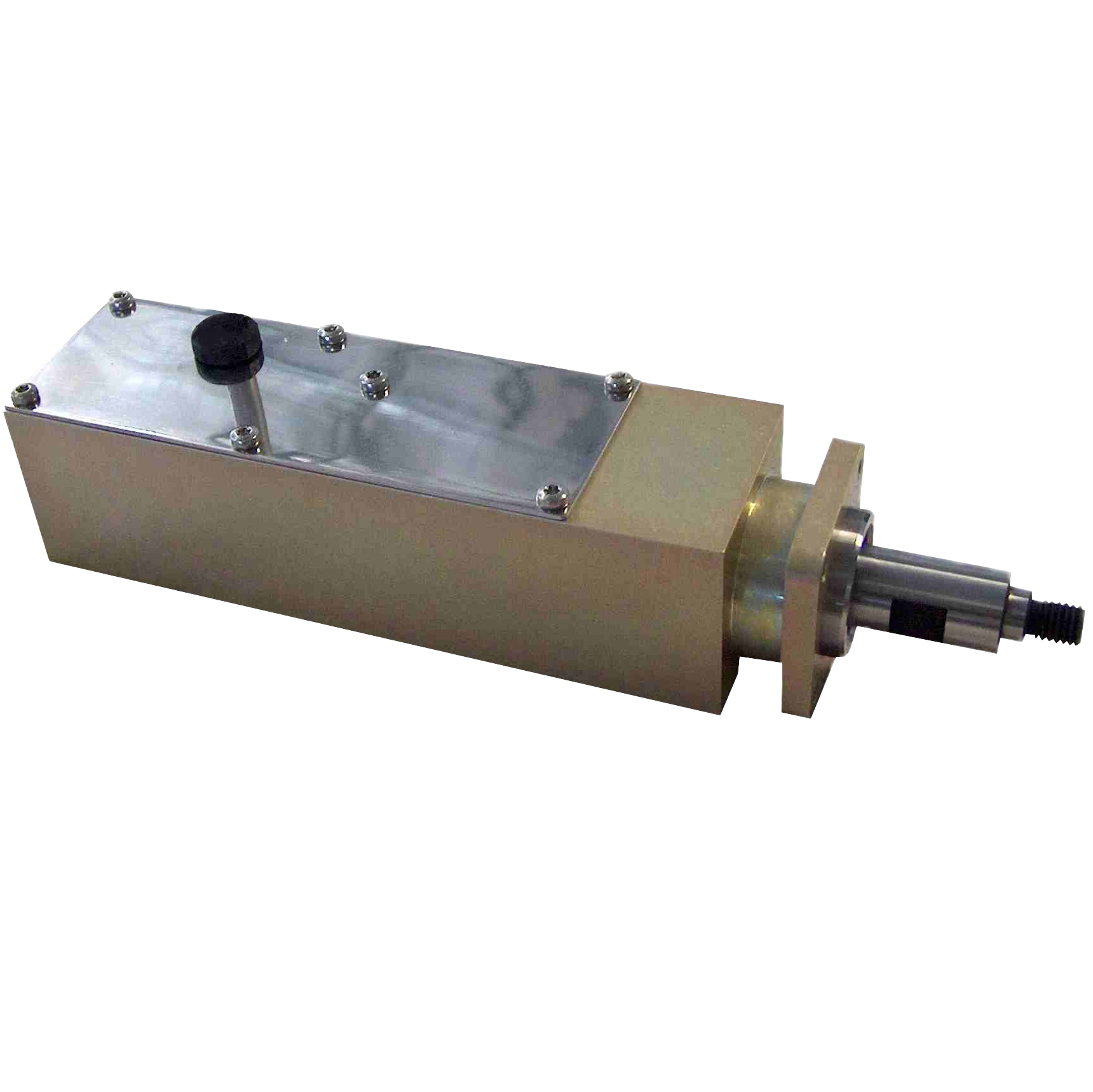

Compact actuator resistant to lateral loads
Compact actuator resistant to lateral loads Compact actuator resistant to lateral loads 30: Travel (mm)30: Radial load (N)300: Axial load
Compact actuator resistant to lateral loads Read More »

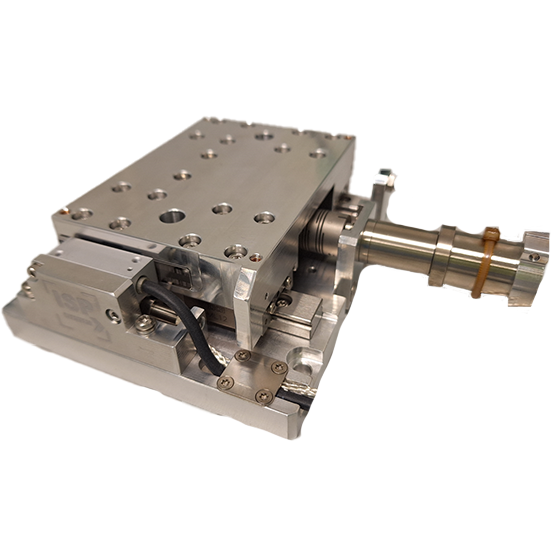

Linear table 01
Linear table 01 Micro-positioning table 25: Travel (mm)200: Resolution (µm/motor step)50: Axial load (N) Guided by two ball-recirculating monorails Repeatability

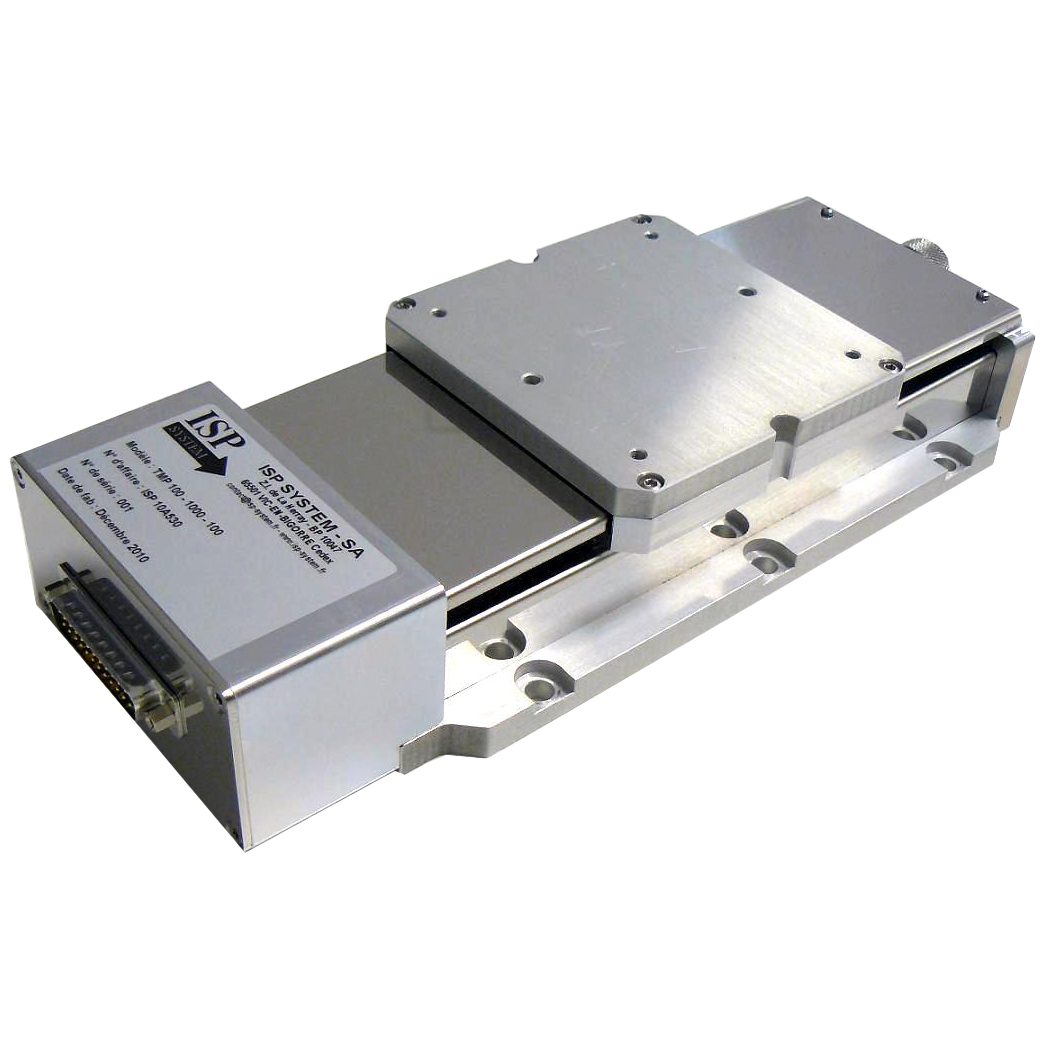

Linear table 02
Linear table 02 micro-positioning table 50-100-200: Travel (mm)625: Resolution (µm/motor step)100: Axial load (N) Possible configurations: XY, XZ, XYZ Repeatability:

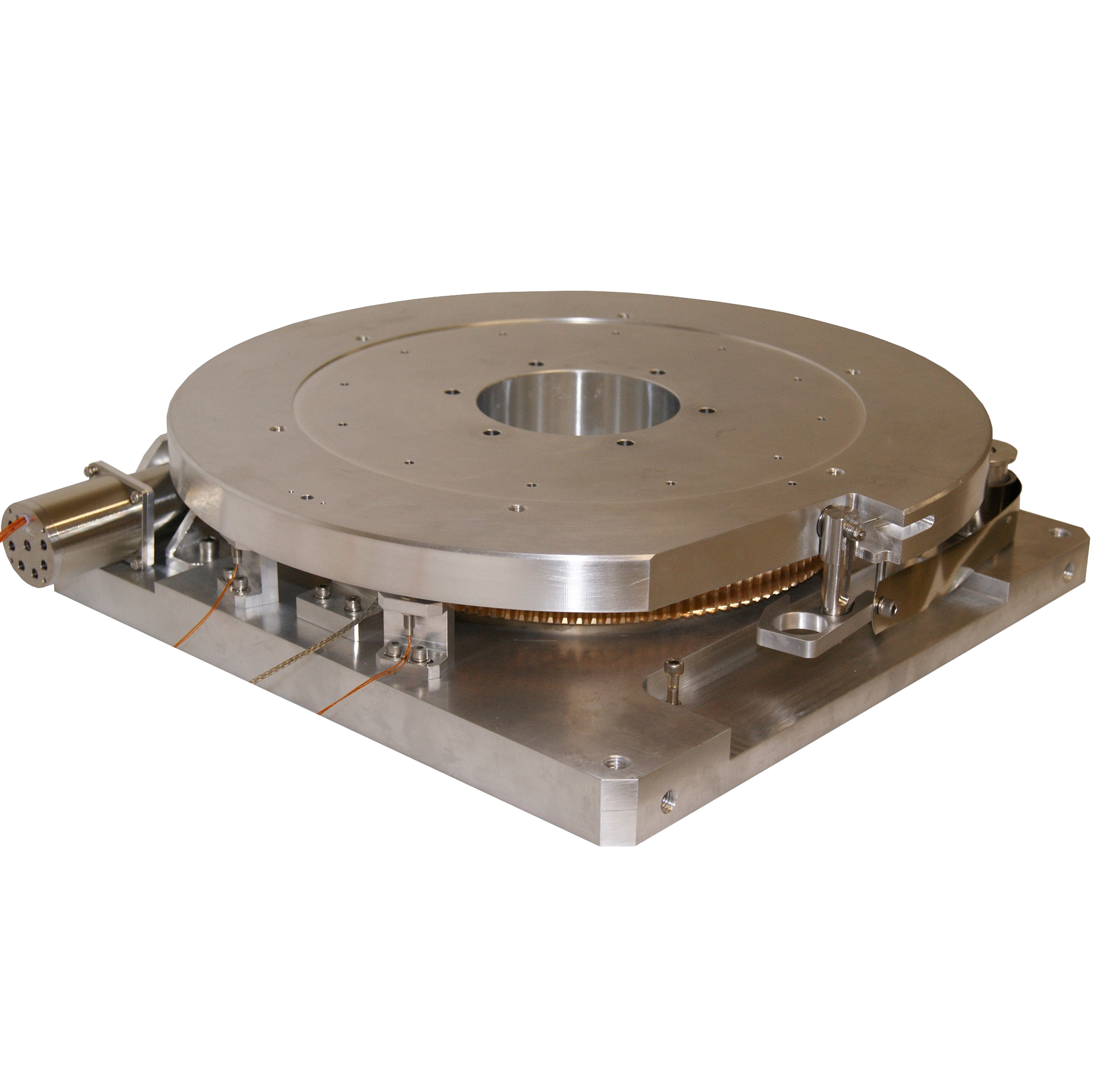

Rotary table 01
Rotary table 01 Micro-angular rotation table. ±170: Rotation range (°)1: Resolution (µrad/motor step)1500: Vertical load (N) Crossed-roller guide Accuracy: 35

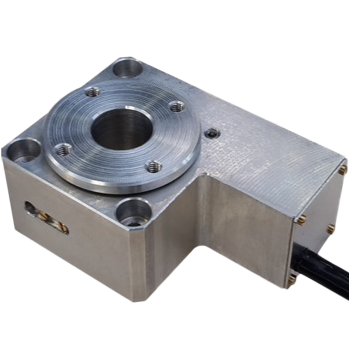

Rotary table 02
Rotary table 02 Micro-angular rotation table. Unlimited: Rotation angle (°)1.57: Resolution (µrad/motor step) Irreversible turntable rotation of the Rour type

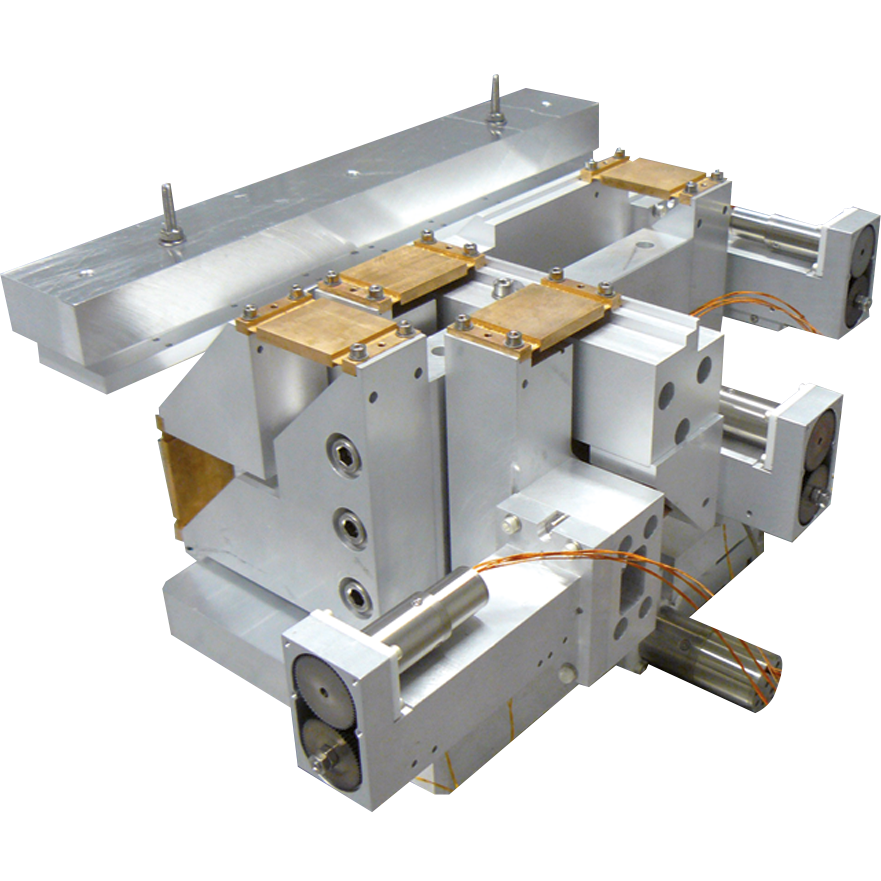

Mirror positionner KB 1
KB Mirror positionner M1 4-axis positioning: Tx – Motorised translation along the X axis; Rx, Rz, Rs – Motorised rotation
Mirror positionner KB 1 Read More »

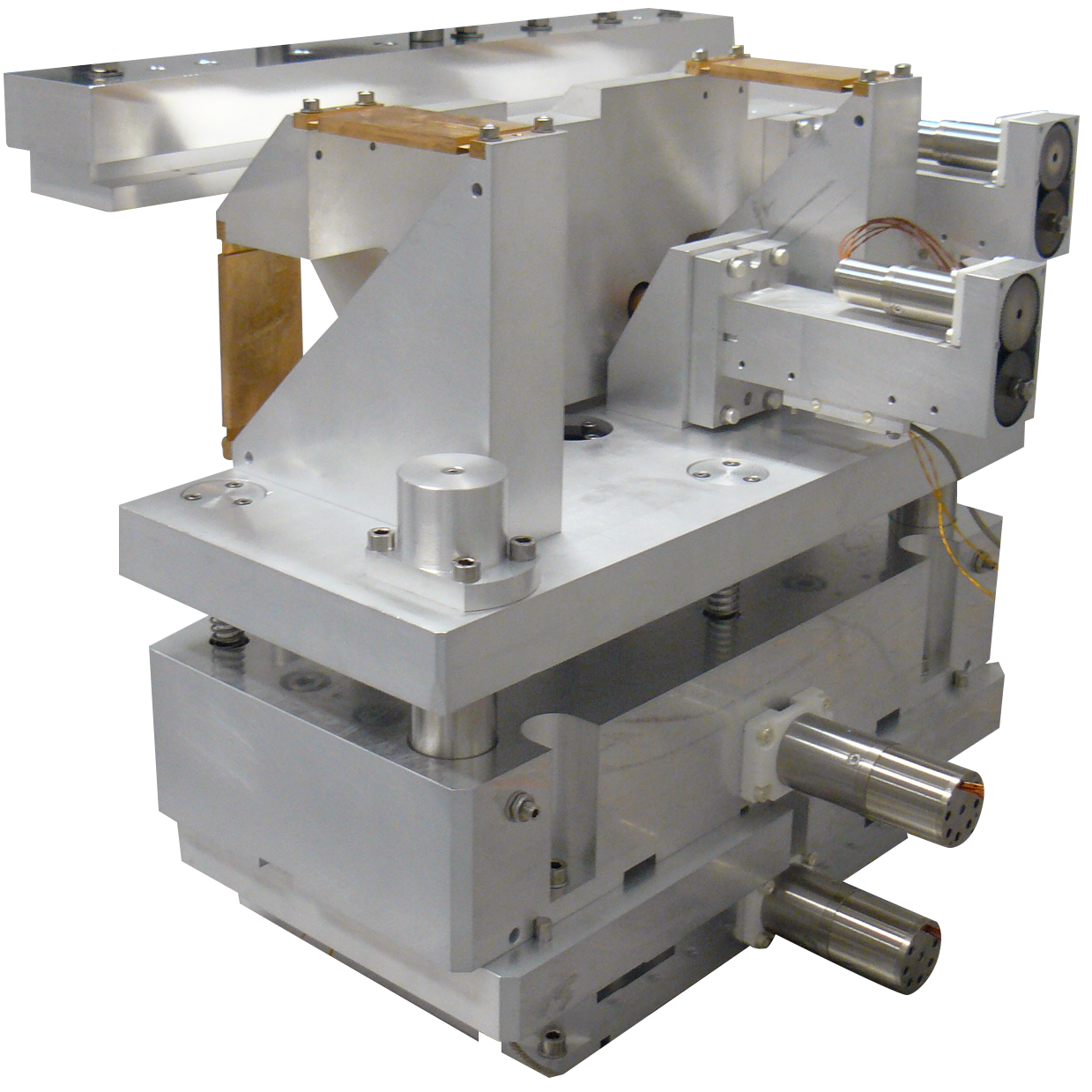

Mirror positionner KB
Positionneur Miroir KB M2 Positioningt 5 axes: Tx, Tz – motorized translation according to X, Z Rx – Manual rotation
Mirror positionner KB Read More »
