Scanner Mechanism

Scanner-Mechanism
  • Dimensioning in respect with ECSS standards
  • Vacuum compatibility : 1.10-7mbar
  • Operational temperature range : -55°C / +45°C (qualification level)
  • Vibration and shock environment : sinus 30g - random 33g RMS - shock 360g
Download datasheet
: Scanner Mechanism

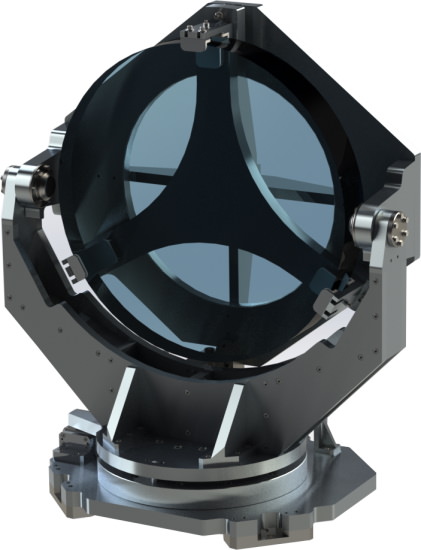

Gimbal Mount 605mm

Motorized mount for laser application
  • Gimbal motorized thanks to two TMP 29 actuators
  • High mechanical stabily
  • Optics diameter: 605mm +/- 5mm
  • Optics thickness: 80 mm +/- 5mm
  • Payload: until to 60kg
Download datasheet
: Gimbal Mount 605mm

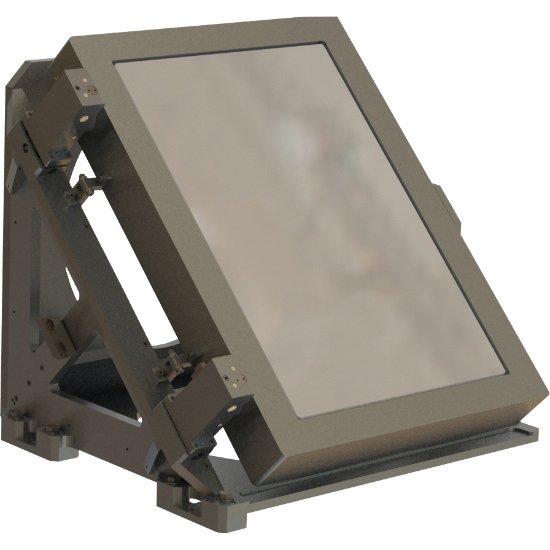

Large tip-tilt periscope mount

Large mirror motorized frame
  • High vibrational stability
  • Resolution : 0.0333 µm/motor step
  • Accuracy: < 75nm + 5% of stroke
  • Hysteresis : < 5 µm
  • Load (frame+optics): up to 150kg
Download datasheet
: Large tip-tilt periscope mount

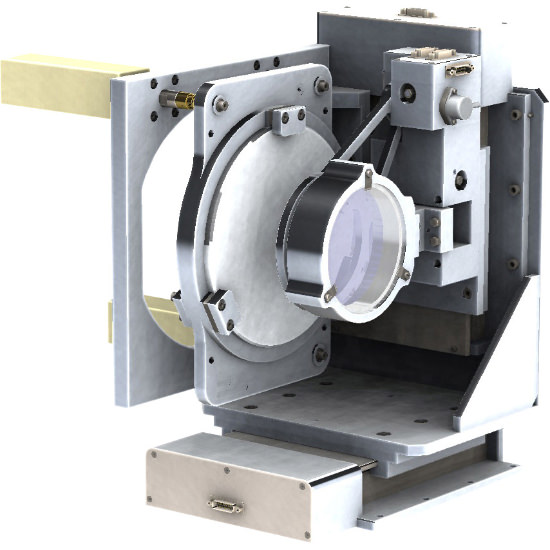

Multi-axis motorized mount

Optical compressor PETAWAT
  • 4-axis positioner (2 translations and 2 rotations) of mirror
  • Product equipped with an XYZ table and 4 actuators
  • Insertion and retraction of diagnostic mirror and optical fibers
Download datasheet
: Multi-axis motorized mount

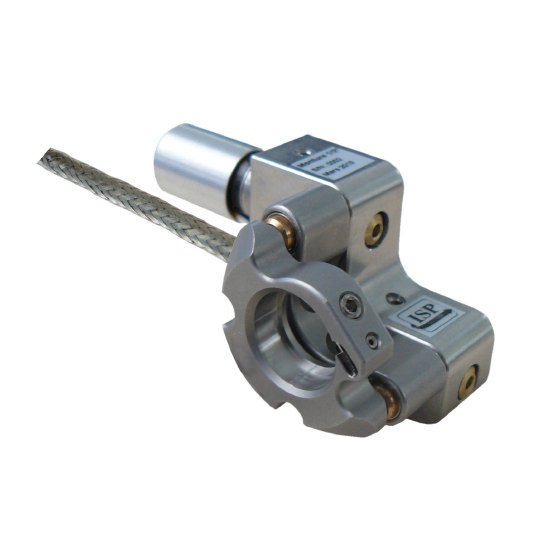

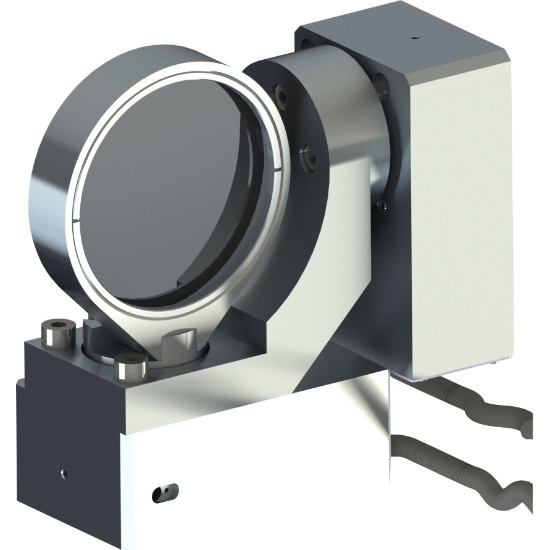

2 inch Gimbal mount

Compact motorized mount
  • Motorized thanks to 2 miniature actuators
  • Motorization type: 24V hybrid stepper
  • Steering: open loop
  • Angular travel: +/- 20 deg
  • Stability: irreversible without food
  • Repeatability: <100µrad RMS

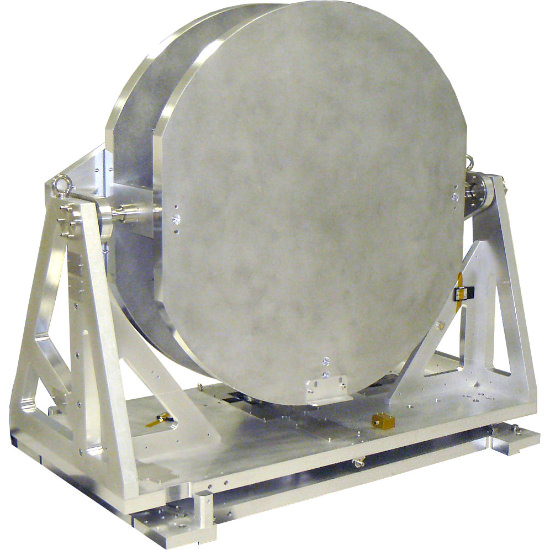

Gimbal mount

For large optics
  • Mirror diameter: 1500mm
  • Maximum load on board: 550kg
  • Compatible: empty, clean room
  • Azimuth and elevation resolution: 10µrad
Download datasheet
: Gimbal mount
